Retrofit ultraFAIMS in 3 simple steps

Published on 19 Apr 17

ultraFAIMS ion mobility can be integrated with existing mass spectrometers

Interfaces are available for most commercial mass spectrometers including:

  • Thermo Scientific, Agilent, Waters, Bruker
  • Custom interfaces are also available to allow integration with mass spectrometers from other manufacturers.

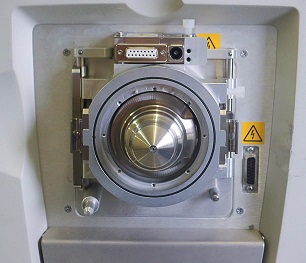

Thermo Scientific Ion Max Source cone
Cone from a Thermo Scientific Ion Max Source

Adding ultraFAIMS is straightforward, to give you an idea of how simple it is to retrofit, see how ultraFAIMS is integrated onto a Thermo Scientific Ion Max Source:

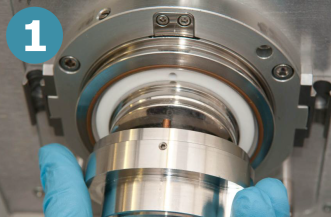

1. Fit ultraFAIMS cone over the spray cone on the MS inlet

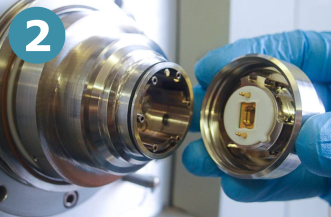

2. Fit the ultraFAIMS chip cap

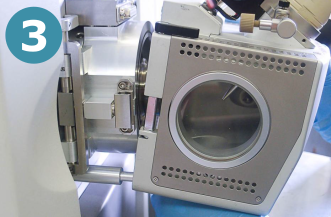

3. Re-mount ionization source on supplied adaptor ring

retrofit ultraFAIMS step 1 retrofit ultraFAIMS step 2 retrofit ultraFAIMS step 3

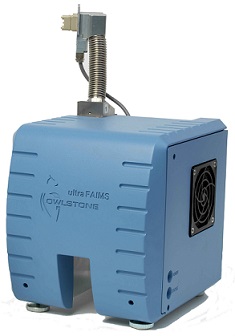

ultraFAIMS thumbnail

ultraFAIMS

Add ion mobility to existing mass spectrometers to provide in-source separation of ions

    • Retrofit to Thermo Scientific, Agilent, Waters and Bruker instruments
